Frequency-switched Data Reduction#

This notebook shows how to use dysh to calibrate a frequency switched observations. The idea is similar to an OnOff observation, except the telescope does not move to an Off in position on the sky, but moves its intermediate frequency in frequency space. Here we call the On and Off the Sig and Ref, but both will have the signal, just shifted in the band. Since the telescope is always tracking the target, combining the Sig and a shifted (folded) Ref, a \(\sqrt{2}\) improvement in signal-to-noise can be achieved.

The retrieval and calibration of frequency-switched observations uses GBTFITSLoad.getfs(), which returns a ScanBlock object.

You can find a copy of this tutorial as a Jupyter notebook here or download it by right clicking here and selecting “Save Link As”.

Loading Modules#

We start by loading the modules we will use for this example.

For display purposes, we use the static (non-interactive) matplotlib backend in this tutorial. However, you can tell matplotlib to use the ipympl backend to enable interactive plots. This is only needed if working on jupyter lab or notebook.

# Set interactive plots in jupyter.
#%matplotlib ipympl

# These modules are required for working with the data.
from dysh.fits.gbtfitsload import GBTFITSLoad

# These modules are only used to download the data.
from pathlib import Path
from dysh.util.download import from_url

Data Retrieval#

Download the example SDFITS data, if necessary.

url = "http://www.gb.nrao.edu/dysh/example_data/frequencyswitch/data/TREG_050627/TREG_050627.raw.acs/TREG_050627.raw.acs.fits"
savepath = Path.cwd() / "data"
savepath.mkdir(exist_ok=True) # Create the data directory if it does not exist.
filename = from_url(url, savepath)











Data Loading#


Next, we use GBTFITSLoad to load the data, and then its summary method to inspect its contents.






sdfits = GBTFITSLoad(filename)
sdfits.summary()













      SCAN
      OBJECT
      VELOCITY
      PROC
      PROCSEQN
      RESTFREQ
      DOPFREQ
      # IF
      # POL
      # INT
      # FEED
      AZIMUTH
      ELEVATION






      90
      W3OH
      0.0
      Track
      1
      1.667359
      1.667359
      1
      2
      6
      1
      22.2283
      18.1145




      91
      W3OH
      0.0
      Track
      1
      1.667359
      1.667359
      1
      2
      6
      1
      22.3521
      18.2098




      92
      W3OH
      0.0
      Track
      1
      1.667359
      1.667359
      1
      2
      6
      1
      22.4739
      18.3043




      93
      W3OH
      0.0
      Track
      1
      1.667359
      1.667359
      1
      2
      6
      1
      22.5953
      18.3993




      94
      W3OH
      0.0
      Track
      1
      1.667359
      1.667359
      1
      2
      6
      1
      22.7163
      18.4949








This data set contains 5 scans, 90 through 94. Each scan observed a single spectral window in two polarizations.






Data Reduction#




Single Scan#


The default is to fold the Sig and Ref to create the final spectrum.  Use fold=False to not fold them and use_sig=False to reverse the role of Sig and Ref. We will start calibrating scan=90 (there are 5), ifnum=0 (there is 1) and plnum=1 (there are 2).






fs_scan_block = sdfits.getfs(scan=90, ifnum=0, plnum=1, fdnum=0)









The return of sdfits.getfs is a ScanBlock which contains a single FSScan. The FSScan contains the calibrated data for all of the integrations. Now we will time average the integrations.




Time Averaging#


To time average the contents of a ScanBlock use its timeaverage method. Be aware that time averging will not check if the source is the same.


By default time averaging uses the following weights:


\[
\frac{T^{2}_{sys}}{\Delta\nu\Delta t}
\]


with \(T_{sys}\) the system temperature, \(\Delta\nu\) the channel width and \(\Delta t\) the integration time. In dysh these are set using weights='tsys' (the default).






ta = fs_scan_block.timeaverage(weights='tsys')













Plotting#


Plot the data and use different units for the spectral axis.

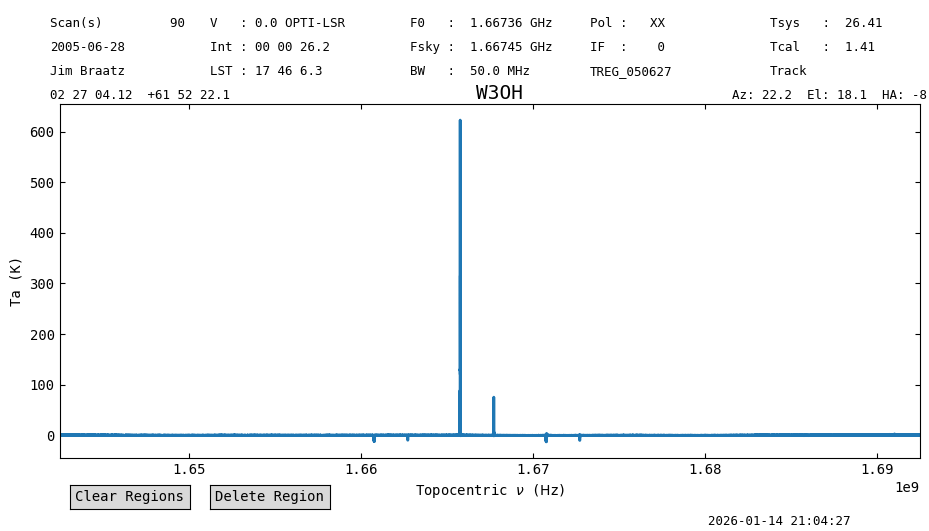

ta.plot()









<dysh.plot.specplot.SpectrumPlot at 0x7155ff1ea620>




../../_images/3322f98539b52f2d862b36cd3b46daf65a0fc1e892393a4697a9094789830a8b.png





Now change the x-axis units to km s\(^{-1}\) and restrict the range being shown.

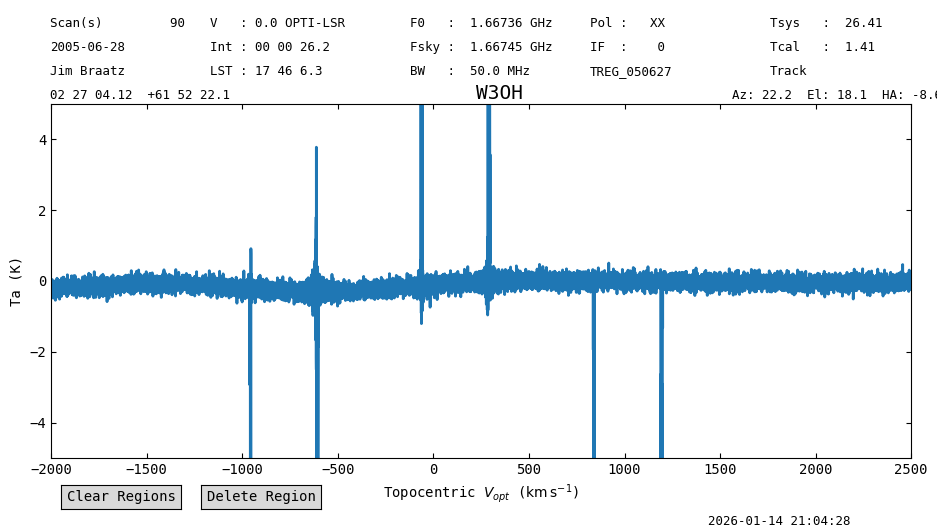

ta.plot(xaxis_unit="km/s", yaxis_unit="K", ymin=-5, ymax=5, xmin=-2000, xmax=2500)









<dysh.plot.specplot.SpectrumPlot at 0x7155ff1ea620>




../../_images/160b6969922342f053217b4c1b9d31f985fe52a40692a999941a7c69a964e55b.png









Baseline Subtraction#


Next we remove a baseline from the data.


We zoom in into the baseline to determine which model the use.

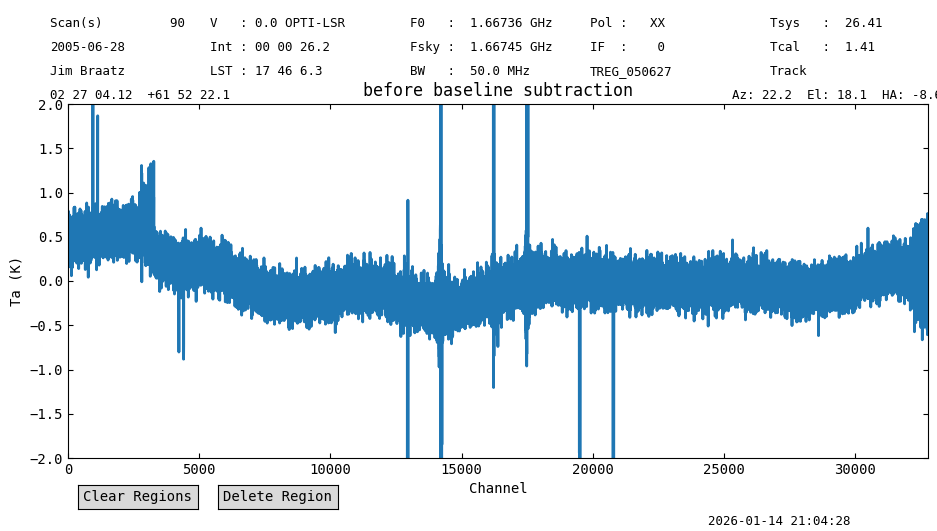

ta.plot(xaxis_unit="chan", yaxis_unit="K", ymin=-2, ymax=2, title="before baseline subtraction")









<dysh.plot.specplot.SpectrumPlot at 0x7155ff1ea620>




../../_images/dff4b55902f5b1343c1c43e2aeb6d3a199271ccdecd39897033186649798283b.png





The baseline looks quasi-periodic, so a Chebyshev (model='chebyshev') polynomial model may be a good model to use. Other available alternatives are: hermite, legendre and classic polynomial


For baseline subtraction it is possible to specify the range of channels to be included in the fit (using the include argument) or excluded (using the exclude argument). Only one channel selection can be used at a time.


We will also look at the mean, rms, min and max of the data before and after baseline subtraction.






# Define a string.
fmt_str = "mean: {mean:.4f} median: {median:.4f} rms: {rms:.3f} min: {min:.2f} max: {max:.2f}"
# Print the statistics before baseline subtraction.
print(f"Before baseline subtraction -- {fmt_str}".format(**ta[4200:5300].stats()))

# Subtract the baseline.
ta.baseline(model="chebyshev", degree=5, include=[(4200,10000),(22000,32000)], remove=True)

# Print the statistics after baseline subtraction.
print(f"After baseline subtraction -- {fmt_str}".format(**ta[4200:5300].stats()))

# Now plot the baseline subtracted spectrum.

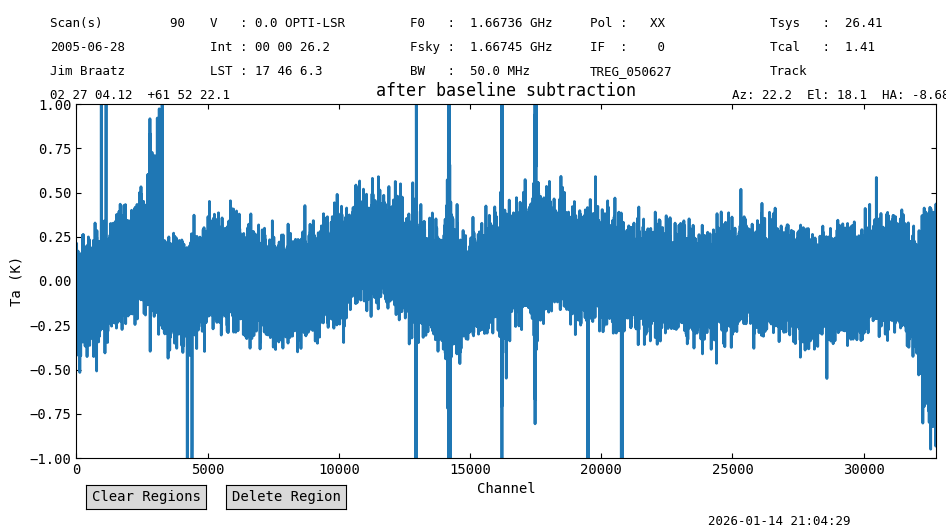

ta.plot(xaxis_unit="chan", yaxis_unit="K", ymin=-1, ymax=1, title="after baseline subtraction")









Before baseline subtraction -- mean: 0.1734 K median: 0.1736 K rms: 0.140 K min: -0.88 K max: 0.60 K
After baseline subtraction -- mean: -0.0089 K median: -0.0085 K rms: 0.145 K min: -1.10 K max: 0.45 K





<dysh.plot.specplot.SpectrumPlot at 0x7155ff1ea620>




../../_images/269ae4f9a686601026687adcdbb4e08e146542f71fe036f4b9386d667d616ad6.png





Now we will undo this baseline fit, and plot it again to see if we get the same spectrum back. Also adding the statistics on the first section of the baseline to confirm the statistics are all the same as before we started fitting.






ta.undo_baseline()

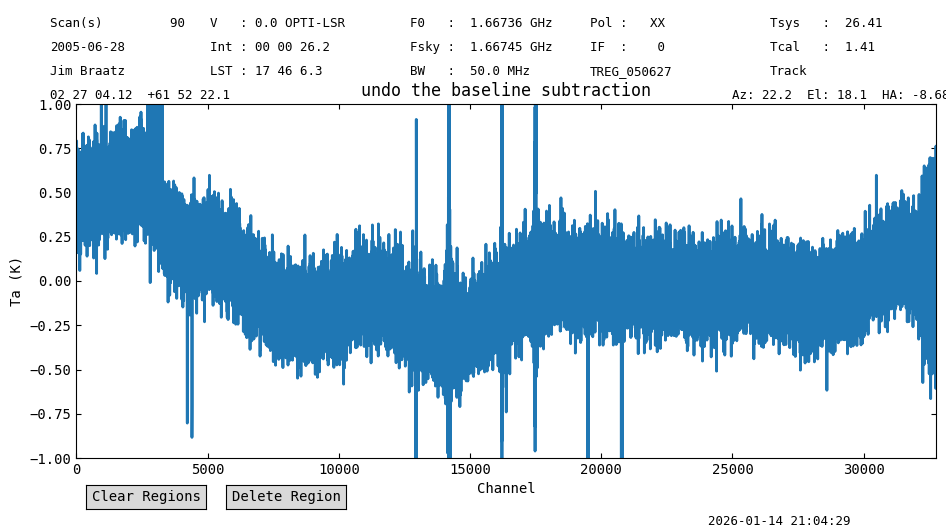

ta_plt = ta.plot(xaxis_unit="chan", yaxis_unit="K", ymin=-1, ymax=1, title='undo the baseline subtraction')
print(f"After undoing the baseline subtraction -- {fmt_str}".format(**ta[4200:5300].stats()))









After undoing the baseline subtraction -- mean: 0.1734 K median: 0.1736 K rms: 0.140 K min: -0.88 K max: 0.60 K




../../_images/73fa5ac70f38be3ebf5cecfe32f53f28ff88df68a0601bc8d577ec1efdd1dbc7.png









output_dir = Path.cwd() / "output"
ta_plt.savefig(output_dir / "baselined_removed.png")













Using Selection#


We will repeat the calibration of scan=90 using selection. To do this we pre-select the data using the sdfits.select() method.






sdfits.select(scan=90)













fs_scan_block2 = sdfits.getfs(plnum=1, ifnum=0, fdnum=0)
ta2 = fs_scan_block2.timeaverage()

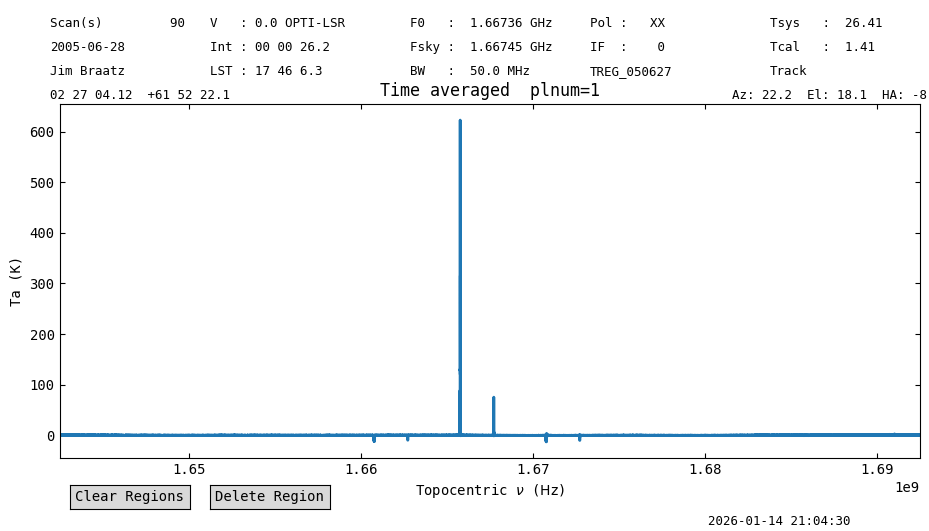

ta2.plot(title='Time averaged  plnum=1')
print(f"Using selection polarization 1 -- {fmt_str}".format(**ta2[4200:5300].stats()))









Using selection polarization 1 -- mean: 0.1734 K median: 0.1736 K rms: 0.140 K min: -0.88 K max: 0.60 K




../../_images/5cd35884070fe53e55e21b5d194eb765894c52c19dafb59b5cc5264897734712.png









Polarization Average#


Now we will calibrate the other polarization and average the two polarizations together.


First we calibrate the second polarization, then time average it and inspect the time-averaged calibrated spectrum.






fs_scan_block3 = sdfits.getfs(plnum=0, ifnum=0,fdnum=0)
ta3 = fs_scan_block3.timeaverage()

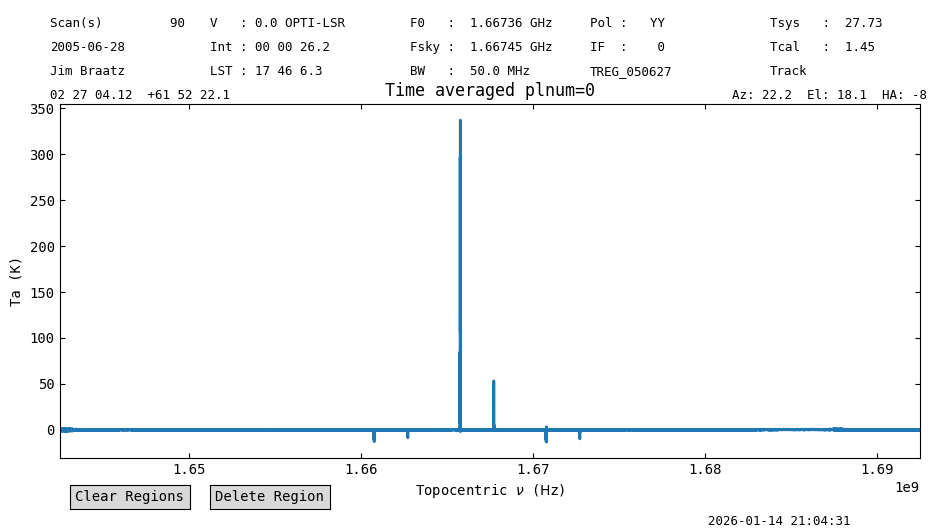

ta3.plot(title='Time averaged plnum=0')
print(f"Using selection polarization 0 -- {fmt_str}".format(**ta3[4200:5300].stats()))









Using selection polarization 0 -- mean: 0.3231 K median: 0.3269 K rms: 0.135 K min: -0.42 K max: 0.81 K




../../_images/a5b8c0759c2e3a31b8b7b28860fb405e227ef8d32b7294ee0ab914dfa8c2cdc2.png





Now we average the polarizations.






avg = 0.5*(ta2 + ta3)

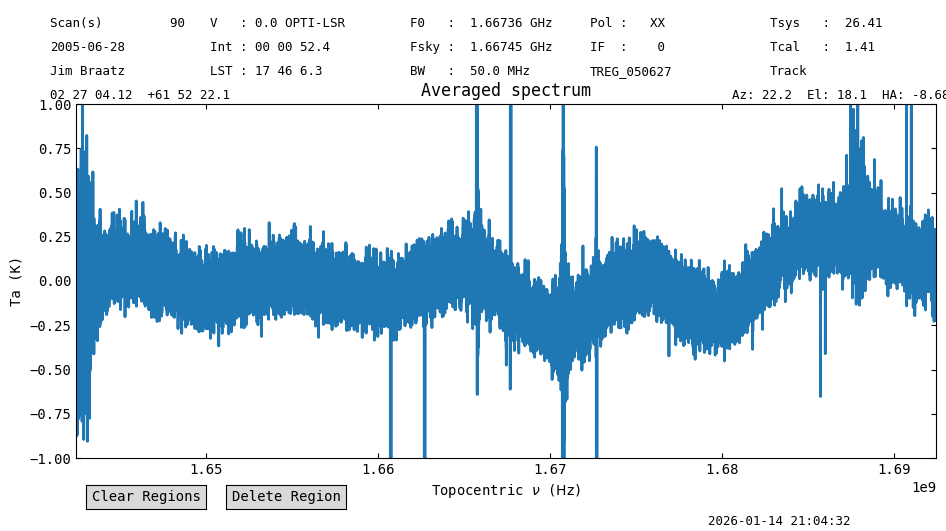

avg.plot(ymin=-1,ymax=1, title='Averaged spectrum')
print(f"Polarization average -- {fmt_str}".format(**avg[4200:5300].stats()))









Polarization average -- mean: 0.2483 K median: 0.2515 K rms: 0.105 K min: -0.65 K max: 0.54 K




../../_images/6c6dbcaf8d4656aa80b8c2d1081c52d7e3a1addc91d6dc6ba6546082fe9532de.png





The noise is reduced by 1.34. Not exactly a factor of \(\sqrt{2}\), likely because of the baseline.
