Flagging#
This guide shows how to use flags in dysh.
# Import modules.
import tarfile
import matplotlib.pyplot as plt
from pathlib import Path
from dysh.util.download import from_url
from dysh.fits.gbtfitsload import GBTFITSLoad
from dysh.util.selection import Selection
import numpy as np
Data Retrieval#
We download the data from a tar.gz file and then unpack it.
url = "http://www.gb.nrao.edu/dysh/example_data/rfi-L/data/AGBT17A_404_01.tar.gz"
savepath = Path.cwd() / "data"
filename = from_url(url, savepath)
# Unpack.
with tarfile.open(filename) as targz:
targz.extractall('./data/')
targz.close()
Data Loading#
After unpacking the data we load it. Notice how dysh tells us that it found a flag file.
sdfits = GBTFITSLoad("./data/AGBT17A_404_01.raw.vegas")
Flags were created from existing flag files. Use GBTFITSLoad.flags.show() to see them.
What flags were loaded?
sdfits.flags.show()
ID TAG OBJECT BANDWID DATE-OBS ... SUBOBSMODE FITSINDEX CHAN UTC # SELECTED
--- --- ------ ------- -------- ... ---------- --------- ---- --- ----------
The above shows that the flag file was empty, so no flags were loaded.
Now, lets look at the summary.
sdfits.summary()
| SCAN | OBJECT | VELOCITY | PROC | PROCSEQN | RESTFREQ | DOPFREQ | # IF | # POL | # INT | # FEED | AZIMUTH | ELEVATIO | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 19 | A123606 | 6600.0 | OnOff | 1 | 1.420406 | 1.420406 | 1 | 2 | 61 | 1 | 64.580455 | 48.379502 |
| 1 | 20 | A123606 | 6600.0 | OnOff | 2 | 1.420406 | 1.420406 | 1 | 2 | 61 | 1 | 64.601241 | 48.433842 |
Data Inspection#
There are two scans, a pair of position switched observations. We will calibrate it and see how the data looks like.
ps_scanblock = sdfits.getps(scan=19, plnum=0)
ps = ps_scanblock.timeaverage()
ps.plot(xaxis_unit="chan")

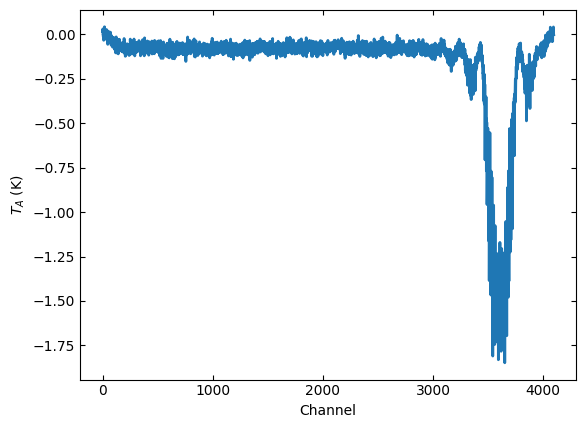

There is radio frequency interference (RFI) for channels above ~2300. We will plot a waterfall to see if the RFI is confined in time. For now, this kind of plot has to be done by hand.
plt.figure()
plt.imshow(ps_scanblock[0]._calibrated, aspect="auto")
<matplotlib.image.AxesImage at 0x7fc8f1a73280>

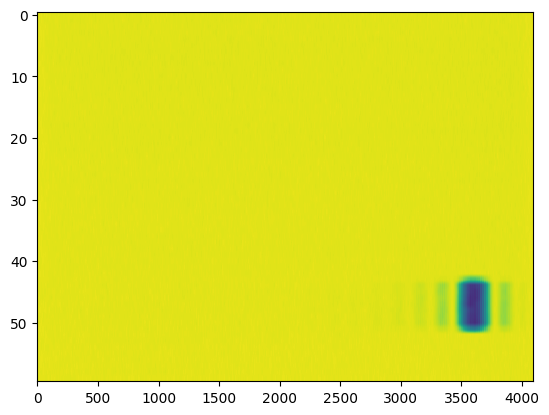

The RFI is confined to integrations 42 to 52, and it affects channels >2300. We will flag this range. Since the RFI shows as negative, it is also likely that this is present in the off scan, scan=20.
Data Flagging#
We use the GBTFITSLoad.flag method to generate flags.
sdfits.flags.clear()
sdfits.flag(scan=20,
channel=[[2300,4096]],
intnum=[i for i in range(42,53)])
sdfits.flags.show()
ID TAG SCAN INTNUM CHAN # SELECTED
--- --------- ---- -------------------------------- ------------- ----------
0 32aa279cd 20 [42,43,44,45,46...8,49,50,51,52] [[2300,4096]] 44
We repeat the calibration after generating the flags.
pssb = sdfits.getps(scan=19, plnum=0, apply_flags=True)
plt.figure()
plt.imshow(pssb[0]._calibrated, aspect="auto")
<matplotlib.image.AxesImage at 0x7fc8f2691510>

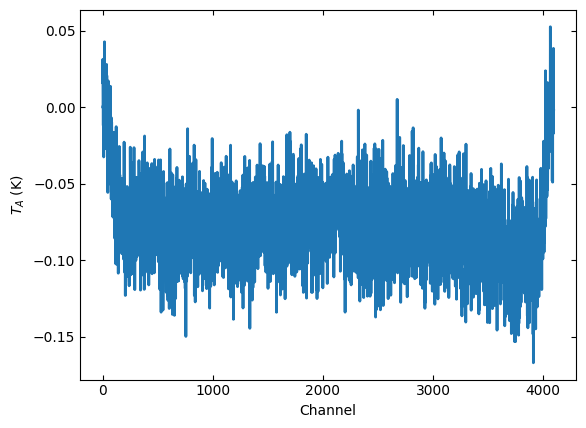

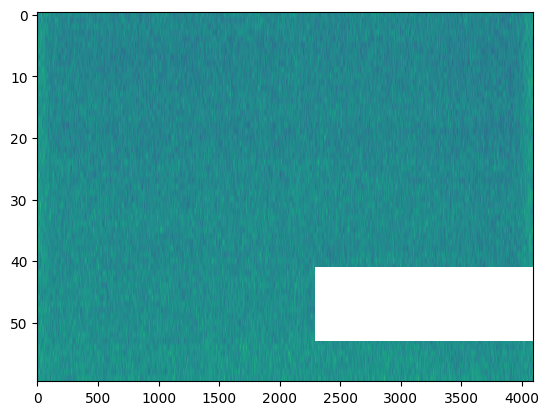

The channels and times affected by RFI have been flagged. We can time average to generate the final spectrum without the RFI.
ps = pssb.timeaverage()
ps.plot(xaxis_unit="chan")
Removing Flags#
To remove flags from the GBTFITSLoad object use the clear_flags method.
sdfits.clear_flags()
sdfits.flags.show()
ID TAG OBJECT BANDWID DATE-OBS ... SUBOBSMODE FITSINDEX CHAN UTC # SELECTED
--- --- ------ ------- -------- ... ---------- --------- ---- --- ----------
Statistics-based Flagging#
We can assume that any significant increase in the standard deviation of the raw spectra is due to heavy RFI. Below, we will calculate mu + 3*sigma for each of the 8 individual switching states, and flag any integrations breaching that threshold.
The last integration has been blanked by VEGAS, and is not plotted below.
#Get raw spectra and standard deviations
specs = sdfits.rawspectra(0,0)
stdevs = np.std(specs,axis=1)
#Organize into scan and switching state.
#There are 2 scans for the target and reference pointings, 2 calibration diode states, and 2 polarizations.
stdevs = np.reshape(stdevs, (2,-1,4))
nrows = stdevs.shape[1]
#Inspect the data
for scan in range(2):
for sw_state in range(4):
plt.plot(stdevs[scan,:-1,sw_state],label=f'State {(4*scan)+sw_state}')
plt.xlabel('Integration #')
plt.ylabel('sigma')
plt.legend()
<matplotlib.legend.Legend at 0x7fc8f26cded0>

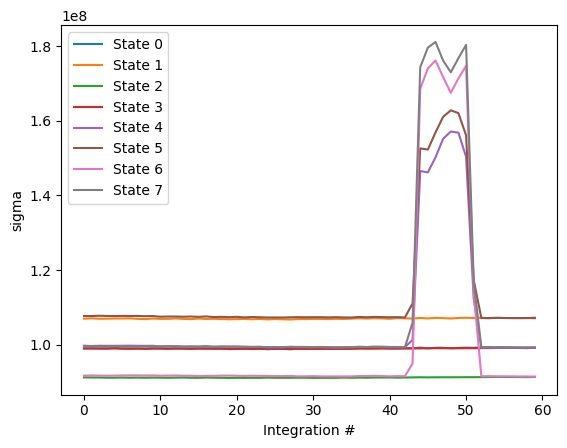

We can see that the 4 states corresponding to the OFF scan have a significant jump corresponding to the GPS L3 RFI. It does not appear to start until the 40th integration, so we will use that as our cutoff to calculate the statistics of the good data, and the thresholds to flag by.
flag_mask = np.zeros(stdevs.shape)
cutoff = 40
mean = np.mean(stdevs[:,:cutoff,:],axis=1)
spread = 3 * np.std(stdevs[:,:cutoff,:],axis=1)
Now we create our flagging mask of zeros and ones, where a one corresponds to a flag to be applied.
flag_mask = np.zeros(stdevs.shape)
mean = np.expand_dims(mean,axis=1)
spread = np.expand_dims(spread,axis=1)
flag_mask[stdevs > mean+spread] = 1
flag_mask = flag_mask.flatten()
flag_rows = np.where(flag_mask==1)[0].tolist()
print(flag_rows)
[176, 178, 185, 186, 187, 190, 191, 194, 195, 198, 199, 201, 202, 203, 206, 207, 208, 209, 210, 211, 214, 215, 216, 217, 218, 219, 222, 223, 226, 227, 230, 231, 234, 235, 236, 237, 238, 239, 240, 242, 416, 417, 418, 419, 420, 421, 422, 423, 424, 425, 426, 427, 428, 429, 430, 431, 432, 433, 434, 435, 436, 437, 438, 439, 440, 441, 442, 443, 444, 445, 446, 447, 448, 449, 450, 451, 484, 486]

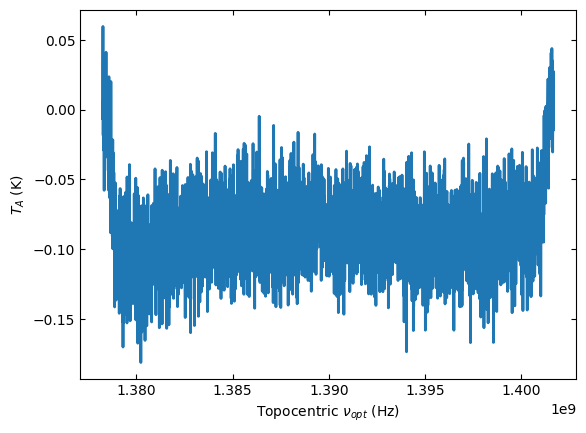

We apply the flags using the “row” keyword, and see that the RFI is removed, along with a drop in the exposure time to 112 seconds instead of the original 150.
sdfits.flag(row=flag_rows)
ps = sdfits.getps(plnum=0).timeaverage()
print(ps.meta['EXPOSURE'])
ps.plot()
112.15101951854204
